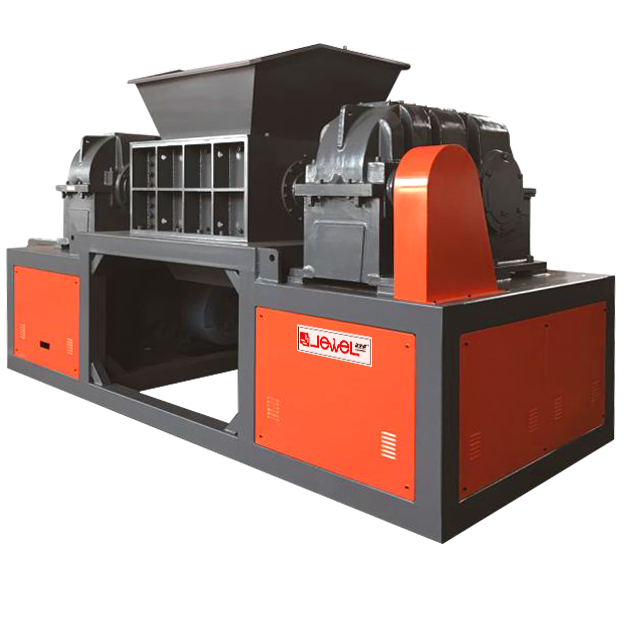

Large - Sized Dual - Shaft Shredder

Scope of Application：

Designed for core heavy-duty applications, this shredder employs a high-performance planetary reducer, delivering exceptional performance with low speed, high torque, and high stability. It features a large feed size, strong throughput, and high crushing efficiency, specially built for processing large and high-strength materials.

The transmission uses German-standard spline connections, offering high torque, precise positioning, even force distribution, and strong load capacity. Equipped with an automatic bearing lubrication system, it ensures continuous oiling, significantly extending bearing and equipment life. The fixed cutters are precision wire-cut, closely matched with spacer sleeves, and features table installation, strong interchangeability, and exceptional durability.

PRODUCT DETAILS

Technical Parameters

Model	Power （Kw/Hp）	Blade Width（mm）	Blade Quality	Blade Materials	Feeding Size	Shredding Chamber Dimension	Output Width(Customizable Length)	Capacity(Ton)
JP-DS1300S	55*2	45/50	28/24	Mov	1500*750	1320*720	45/50	3-4
JP-DS1400S	75*2	60	24	Mov	1600*900	1420*800	50	4-5
JP-DS1500S	90*2	60	24	Mov	1700*1000	1520*900	60	5-6
JP-DS1600S	110*2	60	24	Mov	1800*1000	1620*900	60	6-1
JP-DS1700S	132*2	80	18	Mov	1900*1200	1720*1000	80	7-8
JP-DS1800S	160*2	80	20	Mov	2000*1200	1820*1000	80	8-9
JP-DS1900S	220*2	100	20	Mov	2100*1500	1920*1200	100	10-12
JP-DS2000S	280*2	100	20	Mov	2200*1800	2020*1500	100	12-20

Dimensions
